Temperature Gauges
High-quality industrial temperature gauges proudly manufactured and distributed throughout Southern Africa and beyond.
Temperature Measurement
Our temperature measurements range from -40°C to +600°C, featuring brass or stainless-steel wetted parts, and are available in all popular stem sizes, capillary lengths, and case diameters.
We also provide solid drilled and fabricated thermowells in stainless steel 316 and other exotic materials, manufactured to order.
Vapour Expansion Thermometer
Heavy duty thermometer intended for the demanding industrial automotive industry, such as for the portable air compressors / generators and earthmoving equipment industry.
- 50, 63, 80, 100mm dial
- S/steel case with crimped Panel or surface mount flange optional
- Flexible capillary with probe into brass pocket mount with 1/8, 1/4, 3/8, 1/2″ male threaded connection
- +40….+120 or + 160°C
- Class 6% F.S.
Process Industry Bimetal Thermometer
intended for the chemical, petro-chemical, energy, oil & gas and the food & beverage industry. For installation in pipes, vessels, plant, machinery etc
- 50, 63, 80, 100,125, 160mm dial
- S/steel case with crimp or bayonet bezel
- 1/2″ fixed or adjustable Bottom, rear or adjustable angle
- Stem dia 6mm Stem length 63 to 610mm long
- 30 to +600°C
- Class 6% F.S.

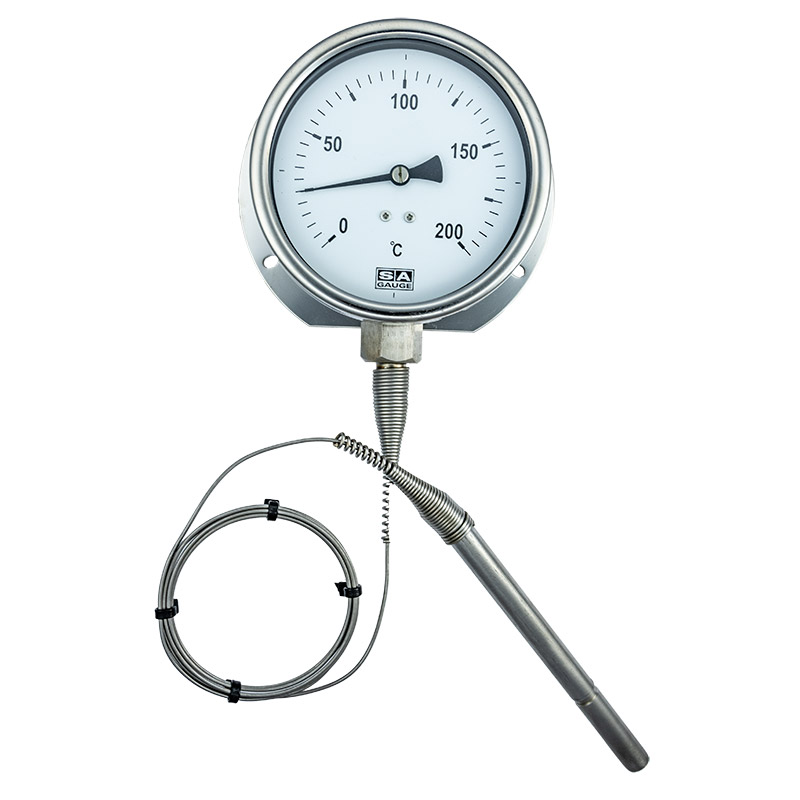

Gas Acuated Thermometer
Heavy duty nitrogen actuated thermometer intended for local or remote reading in the chemical, petro-chemical, energy, oil & gas and the food & beverage industry. Glycerine fillable
- 50, 63, 100, 160, 250mm dial
- S/steel case with crimp or bayonet Panel or surface mount flange optional.
- Rigid stem or flexible capillary with fixed or adjustable Stem dia 12mm std. Stem length 100 to 300mm long.
- -30 to +650°C
- Class 1.0% or 1.6% F.S.
- Electrical alarm contacts optional
Heating & Cooling Systems Bimetal Thermometer
Economically priced thermometer intended for the general heating and cooling industry. For installation in chiller, air-conditioning, solar power and hot water boiler systems
- 63, 80 and 100mm dial
- S/steel case with crimp bezel
- Brass stem with 1/2″ BSP rear connection.
- Length 63mm or Pocket OD 11mm
- 0-60 or 120°C (Other on request)
- Class 6% F.S.

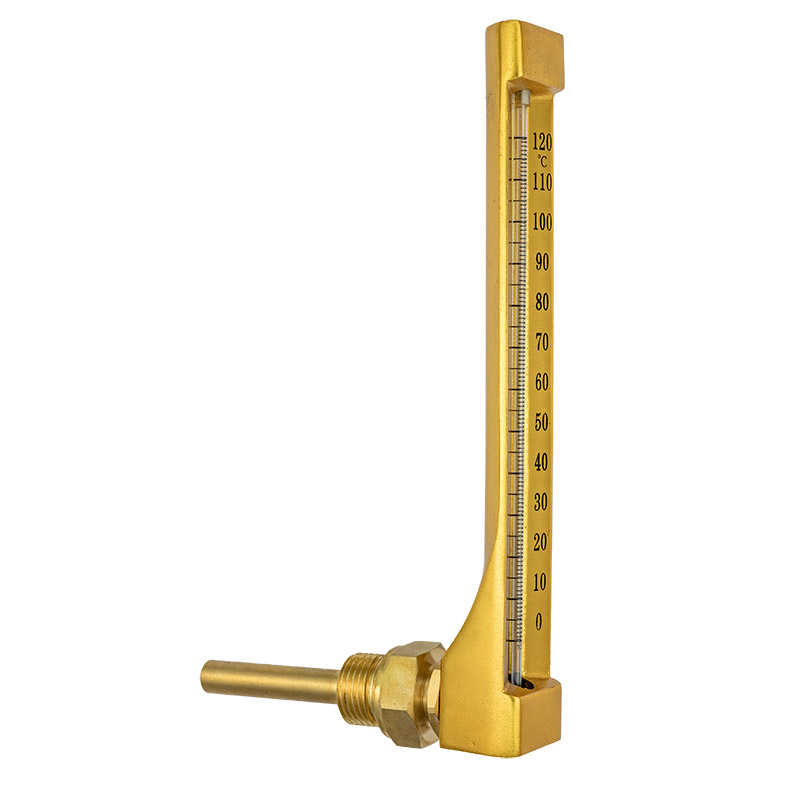

Machine Thermometer
V-Line versatile thermometer intended for the general machine building, cooling / heating, air-conditioning and refrigeration industry. Vibration resistant with a long service life.
- Body 200mm long
- Aluminium body with brass probe
- Straight or angle type
- Glass insert, non-toxic, blue prismatic temp indication
- -30+50, ..60/120/160/200°C
- Class 6% F.S.

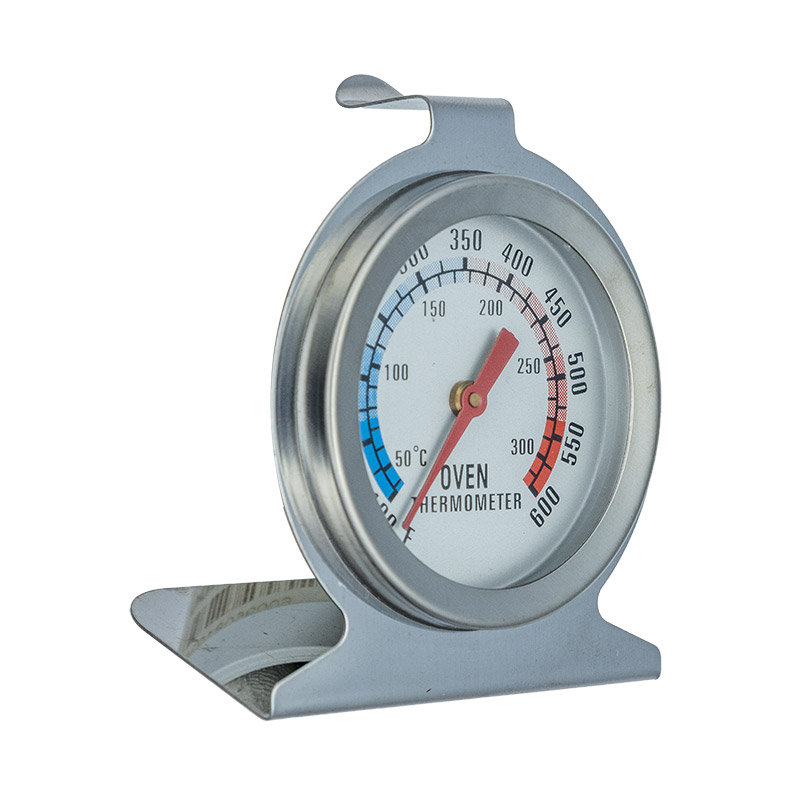

Oven Thermometer
Because the temperature control in most ovens are not accurate, this easy to use oven dial thermometer can be placed inside the oven next to the food item to verify the actual temperature, ensuring perfectly cooked food every time.
- 50mm S/Steel case, free Hygienic & corrosion resistant.
- Flat base to stand upright facing the oven door for easy monitoring.
- Glass lens. Temperature resistant
- Colour coded dial for easy reference
- Range: Dual scale 50-300°C
- & 100-600°F
- Calibration certificate optional
Fridge / Freezer Thermometer
This easy to read, free standing dial thermometer can be placed inside the fridge, freezer or cold room whenever the temperature needs to be monitored at one or more specific locations.
- 50mm S/Steel case, free Hygienic & corrosion resistant.
- Flat base to stand upright facing the oven door for easy monitoring.
- Glass lens. Temperature resistant
- Colour coded dial for easy reference
- Range: Dual scale -30 to +30°C
- & -20 to +80°F
- Calibration certificate optional
Room Temperature Thermometer
Dial type surface mount thermometer intended for measuring room temperature.Customised dials to OEM requirements.
- 100 and 160mm dial
- S/Steel case with crimp or bayonet bezel
- Rear flange for wall mounting
- -30 to +50°C
- Class 6% F.S
- Ideal as personalised gifts to customers or family

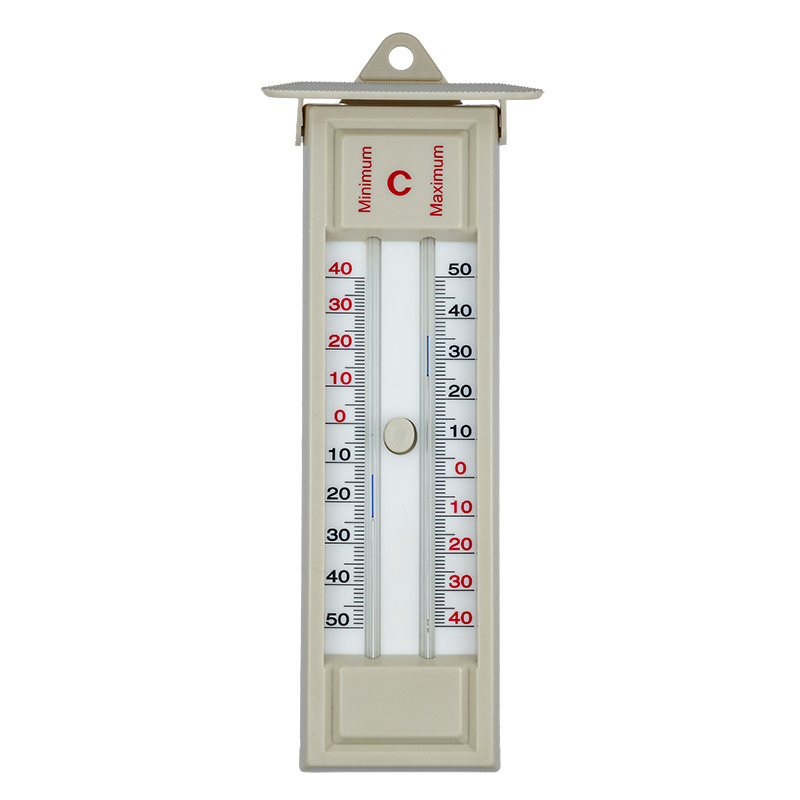

Room Temperature Plastic Thermometer
Plastic body thermometer with glass thermometer insert intended for measuring minimum and maximum room temperatures. Resettable or regular
- Rectangular plastic body, 200mm long
- Glass thermometer insert with non toxic coloured liquid indication
- Wall mountable
- -30 to +50°C
- Min / Max and actual value indication
- Class 1.6% F.S
Folding Thermometer
Heavy duty – Intended for food and hygienic applications.
- 63, 80 and 100mm dial
- S/steel case with crimp bezel
- Brass stem with 1/2″ BSP rear connection.
- Length 63mm or Pocket OD 11mm
- 0-60 or 120°C (Other on request)
- Class 6% F.S.
